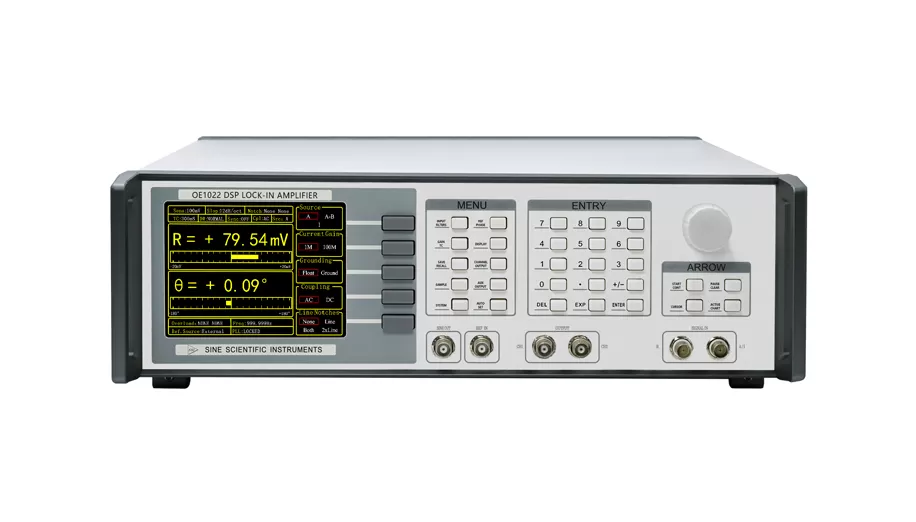

OE1022 Lock-in Amplifier

102kHz Digital Lock-in Amplifier

• 1 mHz–102 kHz frequency
• 10us to 3ks time constants
• Input noise as low as 5nV/√Hz
• Multiple-harmonic measurement
• ＞120 dB dynamic reserve
• FFT spectral analysis

Learn More 

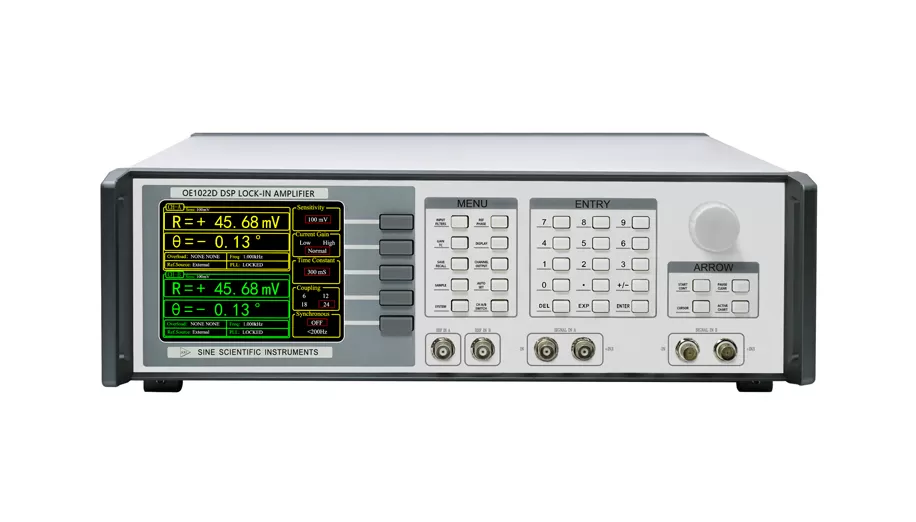

OE1022D Lock-in Amplifier

102kHz Dual Channel Lock-in Amplifier

• 1 mHz to 102kHz frequency
• 2 independent lock-in units
• Dual signal generators
• 24-bit high-precision ADC
• Multiple-harmonic measurement
• Noise as low as 5nV/√Hz

Learn More 

OE2011 Lock-in Amplifier

DC-250kHz Lock-in Amplifier

• DC to 250kHz frequency
• Input noise as low as 2.5nV/√Hz
• Input range 1nV to 5Vrms
• Time constants from 100ns to 3ks
• >130 dB dynamic reserve
• 8-channel demodulator synchronized measurements
• Spectrum analysis, Oscilloscope function
• 2-channel PID controllers

Learn More 

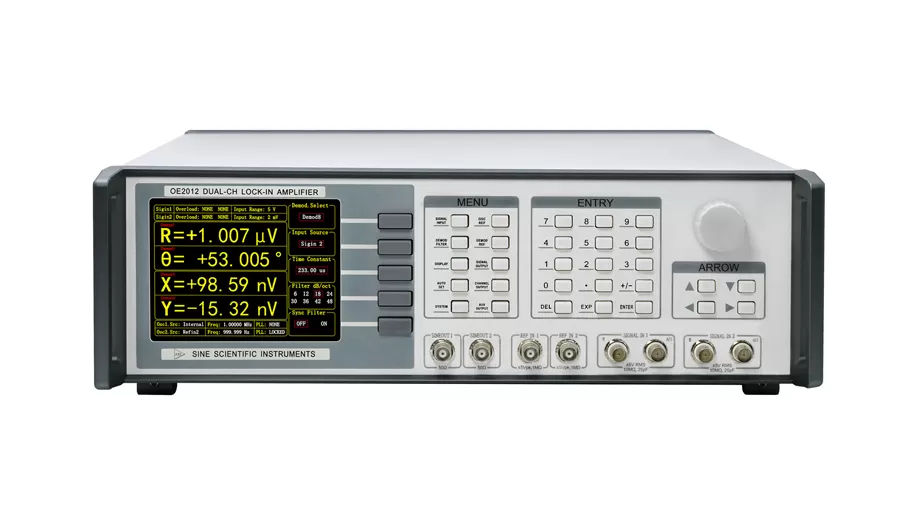

OE2012 Lock-in Amplifier

DC-250kHz Dual-channel Lock-in Amplifier

• DC to 250kHz Frequency
• Input noise as low as 2.5nV/√Hz
• Input range 1nV to 5Vrms
• >130 dB dynamic reserve
• 2 independent synchronized input channels
• 8-channel synchronous demodulators
• 2-channel oscilloscope with FFT analysis
• 2-channel PID controllers

Learn More 

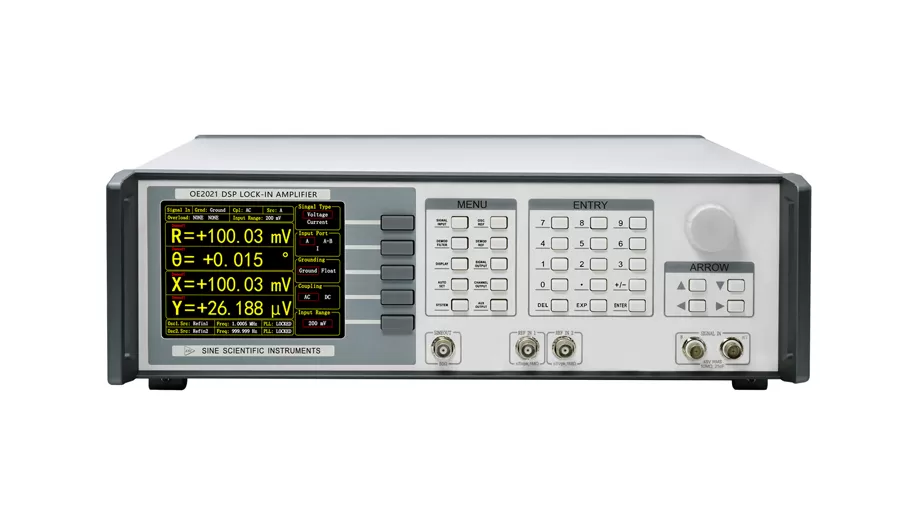

OE2021 Lock-in Amplifier

DC-1.5MHz Lock-in Amplifier

• DC to 1.5MHz frequency
• Input noise as low as 2.5nV/√Hz
• Input range 1nV to 5Vrms
• Time constants from 100ns to 3ks
• >130 dB dynamic reserve
• 8-channel demodulator synchronized measurements
• Spectrum analysis, oscilloscope function
• 2-channel PID controllers

Learn More 

OE2022 Lock-in Amplifier

DC-1.5MHz Dual-channel Lock-in Amplifier

• DC to 250kHz/1.5MHz Frequency
• Input noise as low as 2.5nV/√Hz
• Input range 1nV to 5Vrms
• >130 dB dynamic reserve
• 2 independent synchronized input channels
• 8-channel synchronous demodulators
• 2-channel oscilloscope with FFT analysis
• 2-channel PID controllers

Learn More 

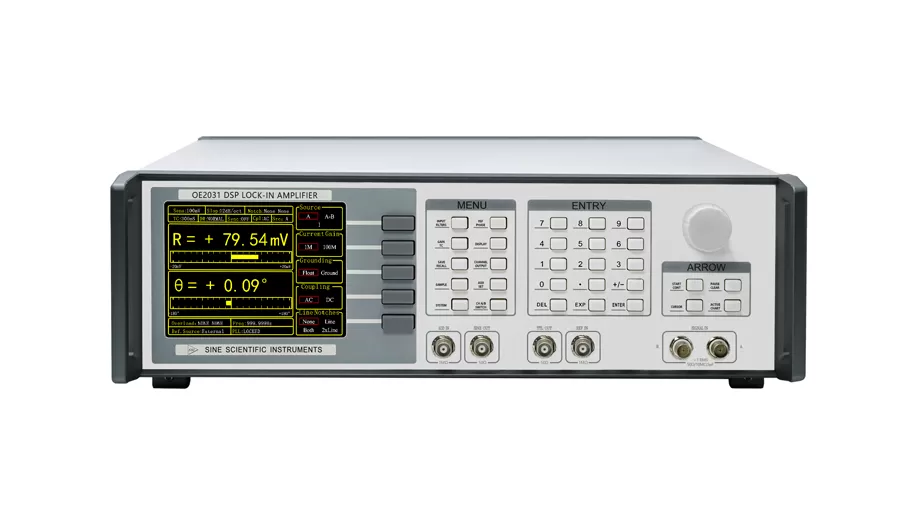

OE2031 Lock-in Amplifier

10MHz Digital Lock-in Amplifier

• DC to 10MHz frequency
• 30ns to 4ks time constants
• 3nV/√Hz input noise
• Multiple-harmonic measurement
• >120 dB dynamic reserve
• Scope, Spectrum Analyzer
• PID Controller, AM Modulation

Learn More 

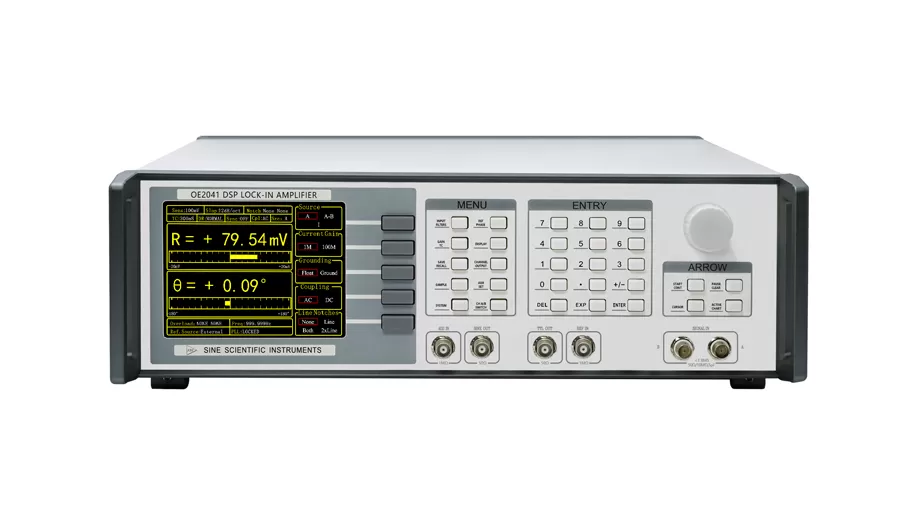

OE2041 Lock-in Amplifier

DC–80 MHz Digital Lock-In Amplifier

• DC–80 MHz frequency range
• 100 ns–3 ks time constants
• >120 dB dynamic reserve
• Multiple-harmonic measurement
• 3nV/√Hz input noise
• Scope, Spectrum Analyzer
• PID Controller, AM Modulation

Learn More 

OE2052 Lock-in Amplifier

400MHz Dual Channel Lock-in Amplifier

• DC to 400MHz frequency
• 2 independent lock-in units
• Dual signal generators
• >120 dB dynamic reserve
• 4nV/√Hz input noise
• Oscilloscope, Spectrum Analyzer
• PID Controller

Learn More 

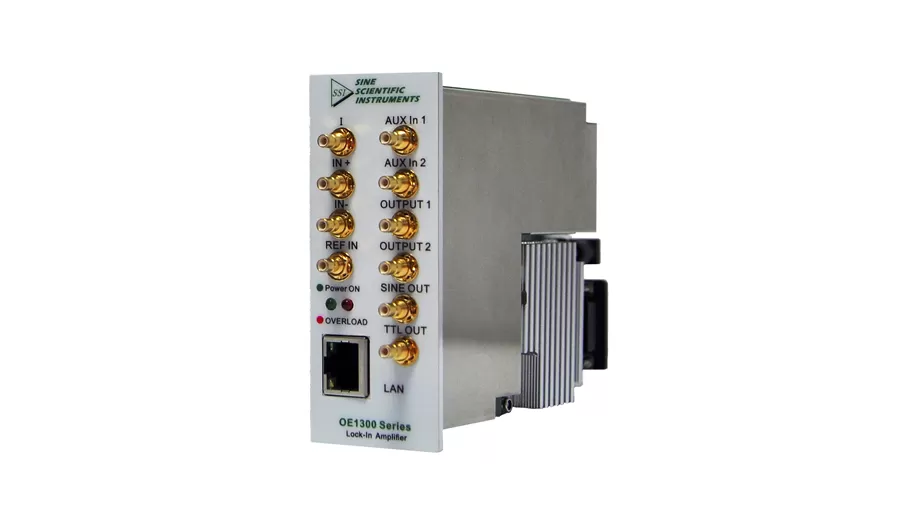

Lock-in Amplifier Module

DC-1MHz Lock-in Amplifier Module

• DC to 1MHz
• 5nV/√Hz  input noise
• Up to 8 demodulators
• >130 dB dynamic reserve
• 1nV to 5V full-scale sensitivity
• Scope, Spectrum Analyze
• Small size, Easy integration

Learn More 
