OE4201 Current Source

100kHz Current Source

Floating ground isolation for input/output
Bandwidth: 1Hz-100kHz
Gain: 2mA/V, 200mA/V
Input range: 5mV-0.5V
Output current: 100mA
High precision & Stability
Robust chassis, Sleek internal design
User-friendly, Flexible switching

Introduction

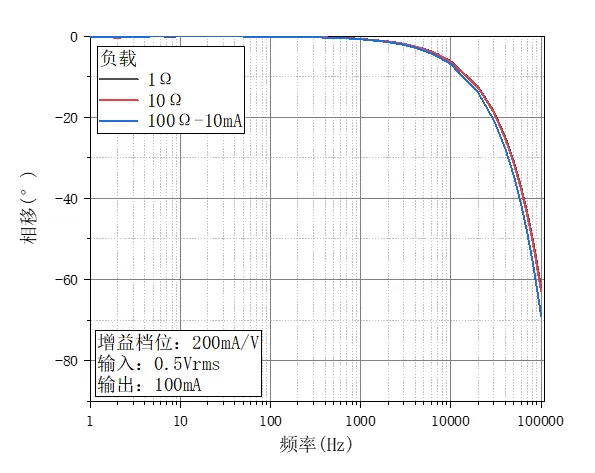

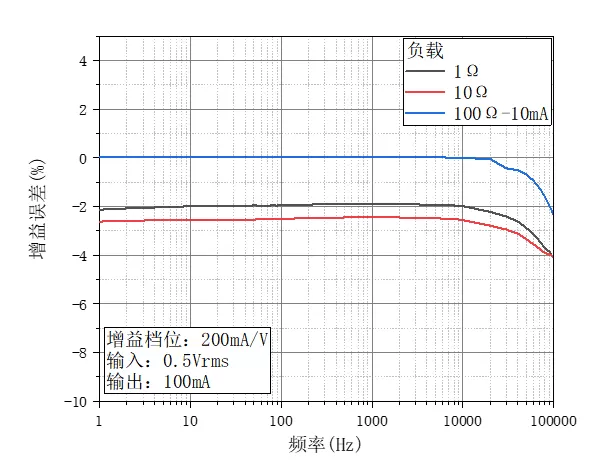

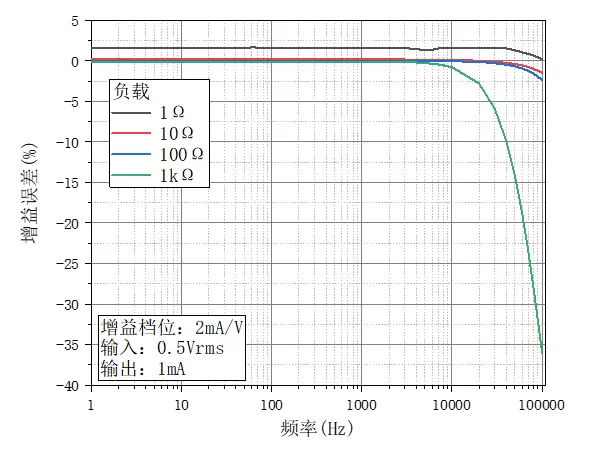

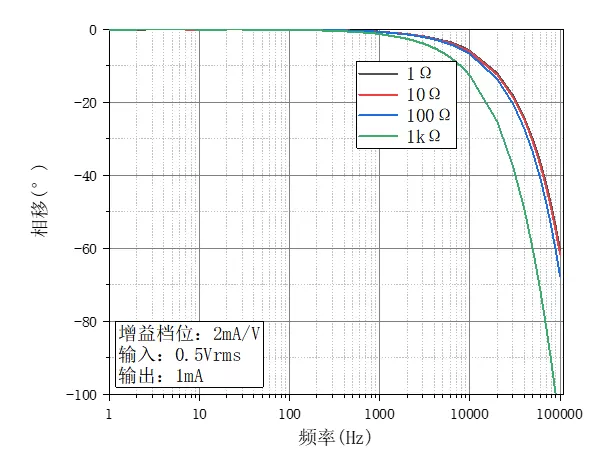

Performance

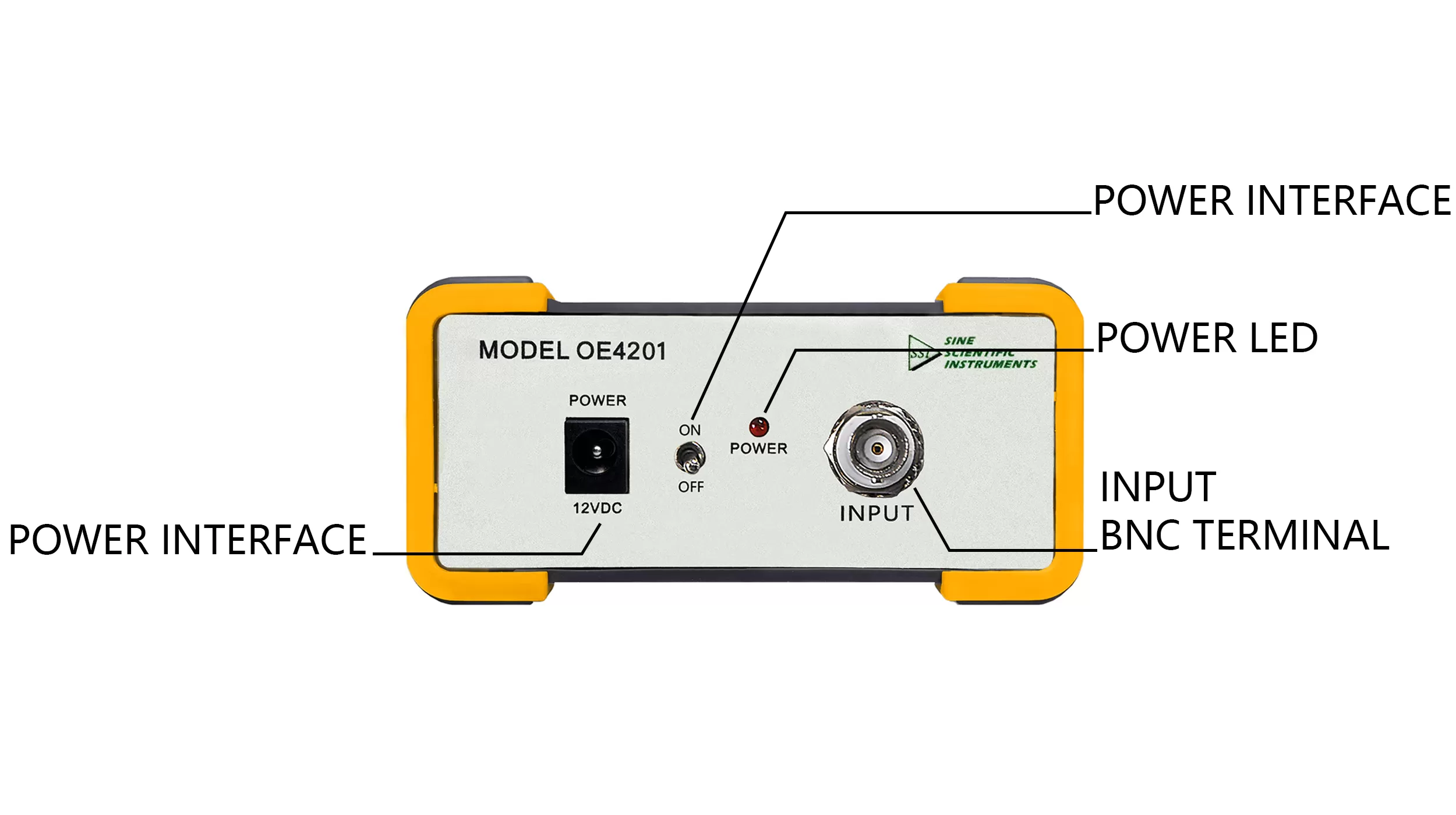

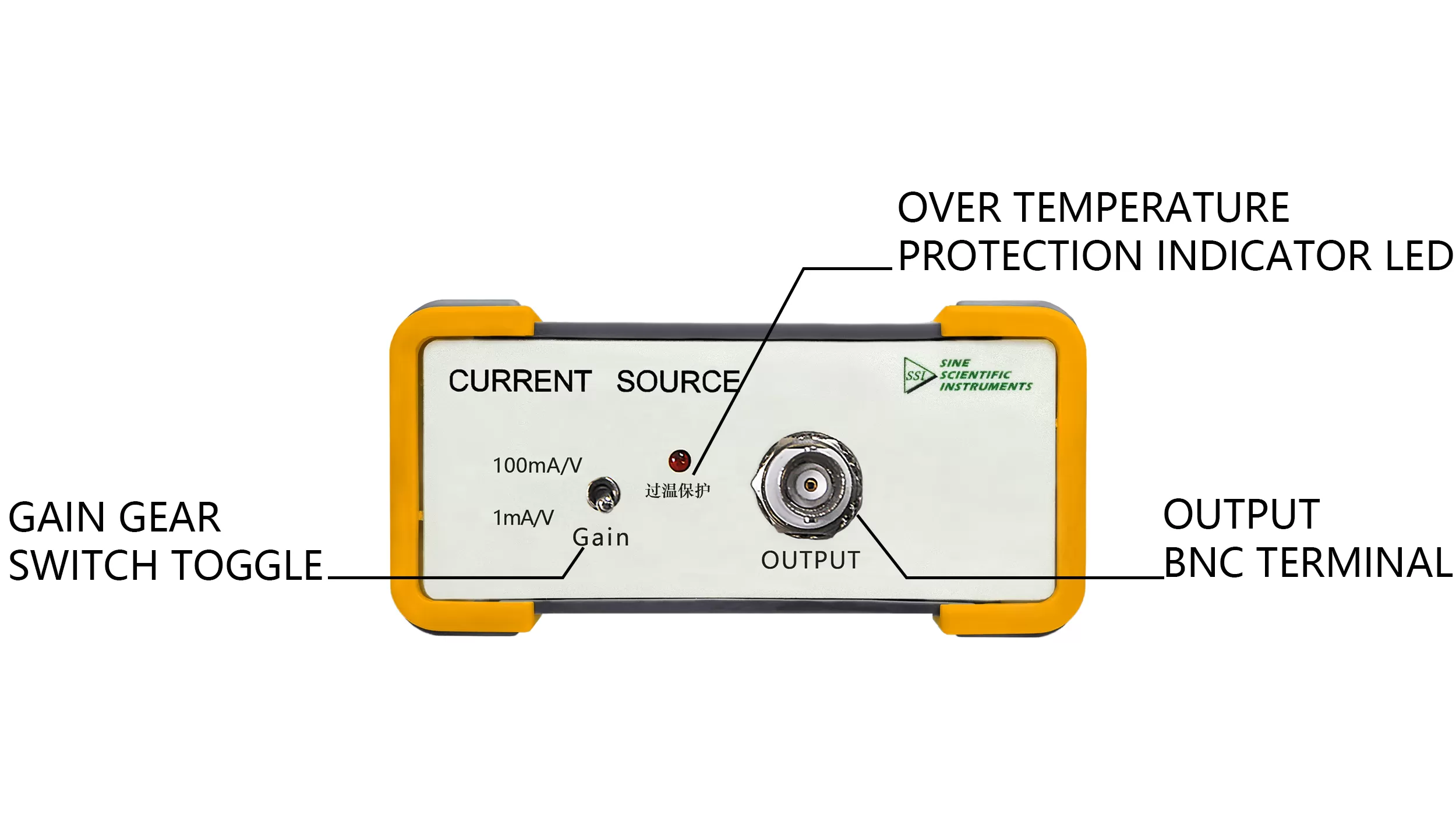

Interface Description

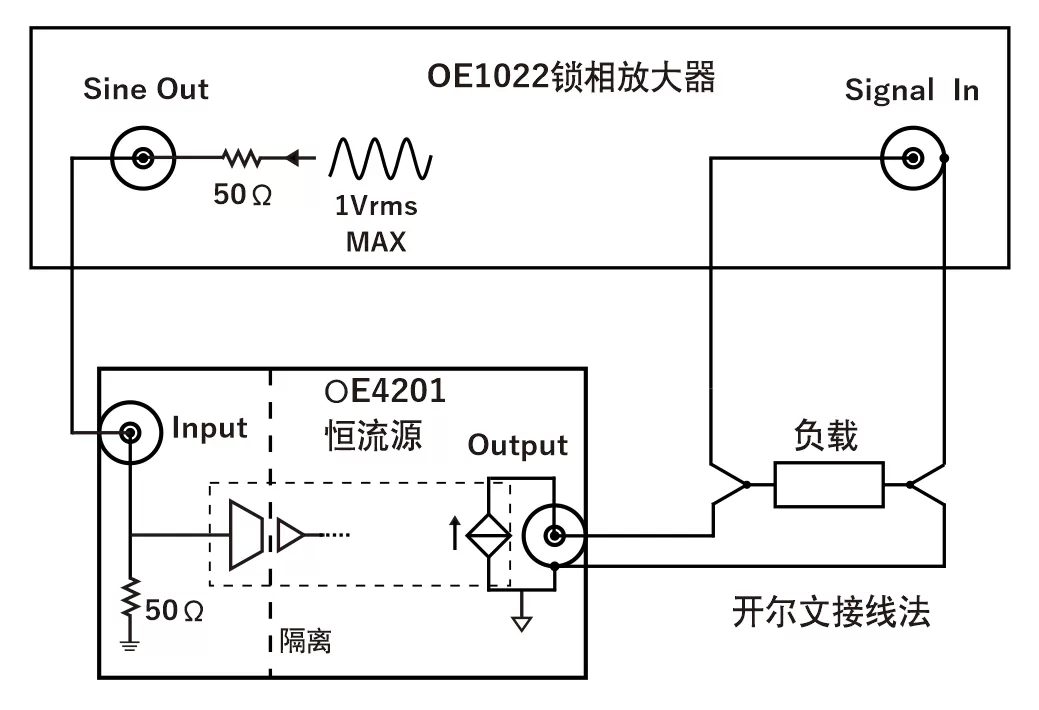

Usage Examples

Download Materials

Overview

The OE4201 is a floating ground-isolated voltage-controlled current source device, which can provide a current source for other instrumentation.The OE4201 outputs AC current with a gain of 2mA/V and 200mA/V in two steps, and a frequency of 1Hz-100kHz. As a current source instrument, the OE4201 has high accuracy, good stability, the output is basically independent of the load and external voltage changes, strong anti-interference ability, and fast response time. It is suitable for use with sensitive AC instruments such as lock-in amplifiers, providing a simple method of generating precision current from AC voltage. Moreover, the OE4201 adopts a standard chassis with a compact, beautiful and reliable internal structure and flexible switching action, which makes the instrument easy to use, adjust and maintain.

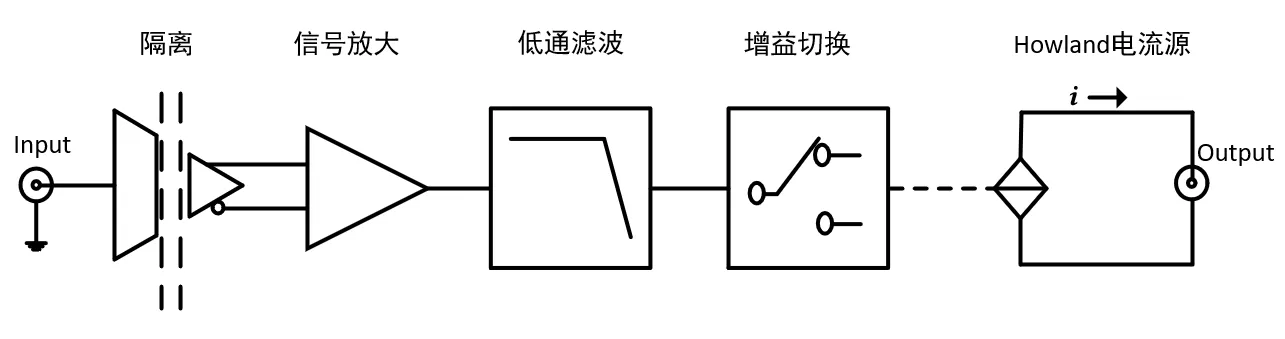

Block Diagram

block diagram oe4201 current source

Input

Input voltage range	0.005Vrms-0.5Vrms
Input Frequency Range	1Hz-100kHz
Input Impedance	50Ω
Input Peak Voltage	±0.707Vmax

Output

Output Mode	Single-ended
Output Current RMS	0.01mA-100mA
Output Load	0.1Ω-1002
Rated Output Voltage	≤1Vrms
Maximum Output Voltage	±9V (open circuit)
Input-Output Gain	2mA/V or 200mA/
