The OE4101 is a transimpedance current pre-amplifier that utilizes a negative feedback structure to convert input current to voltage using a feedback resistor and to control amplification.

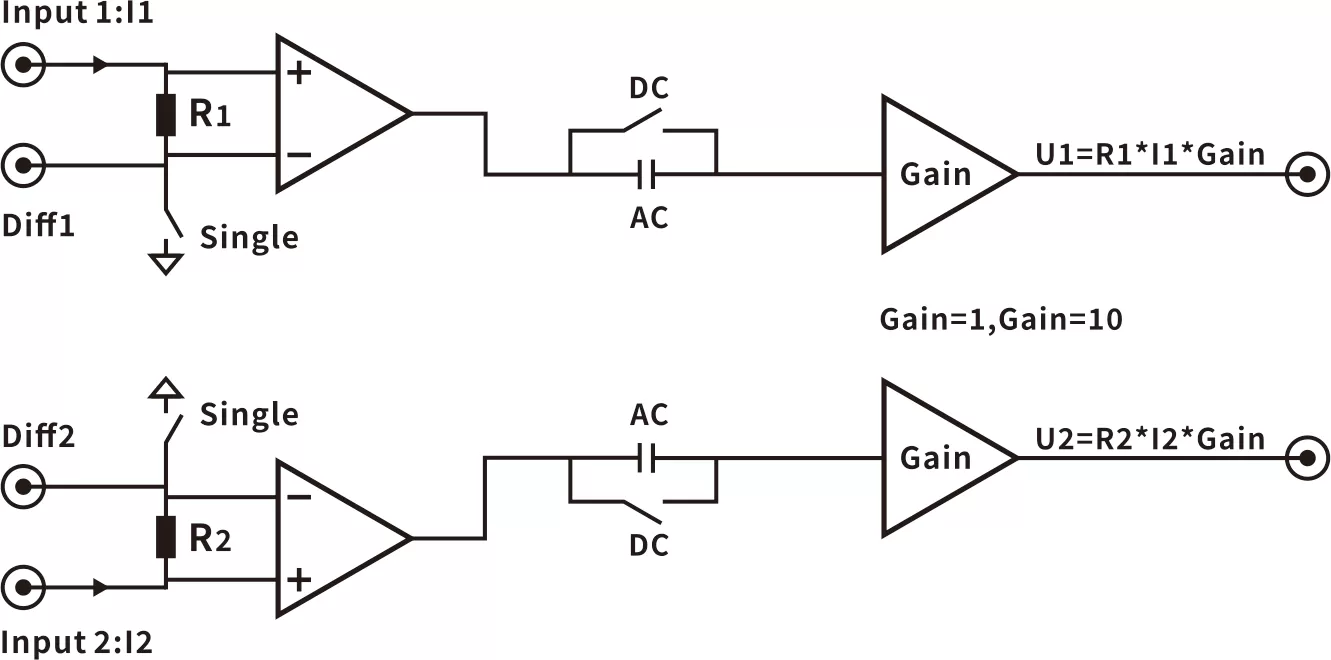

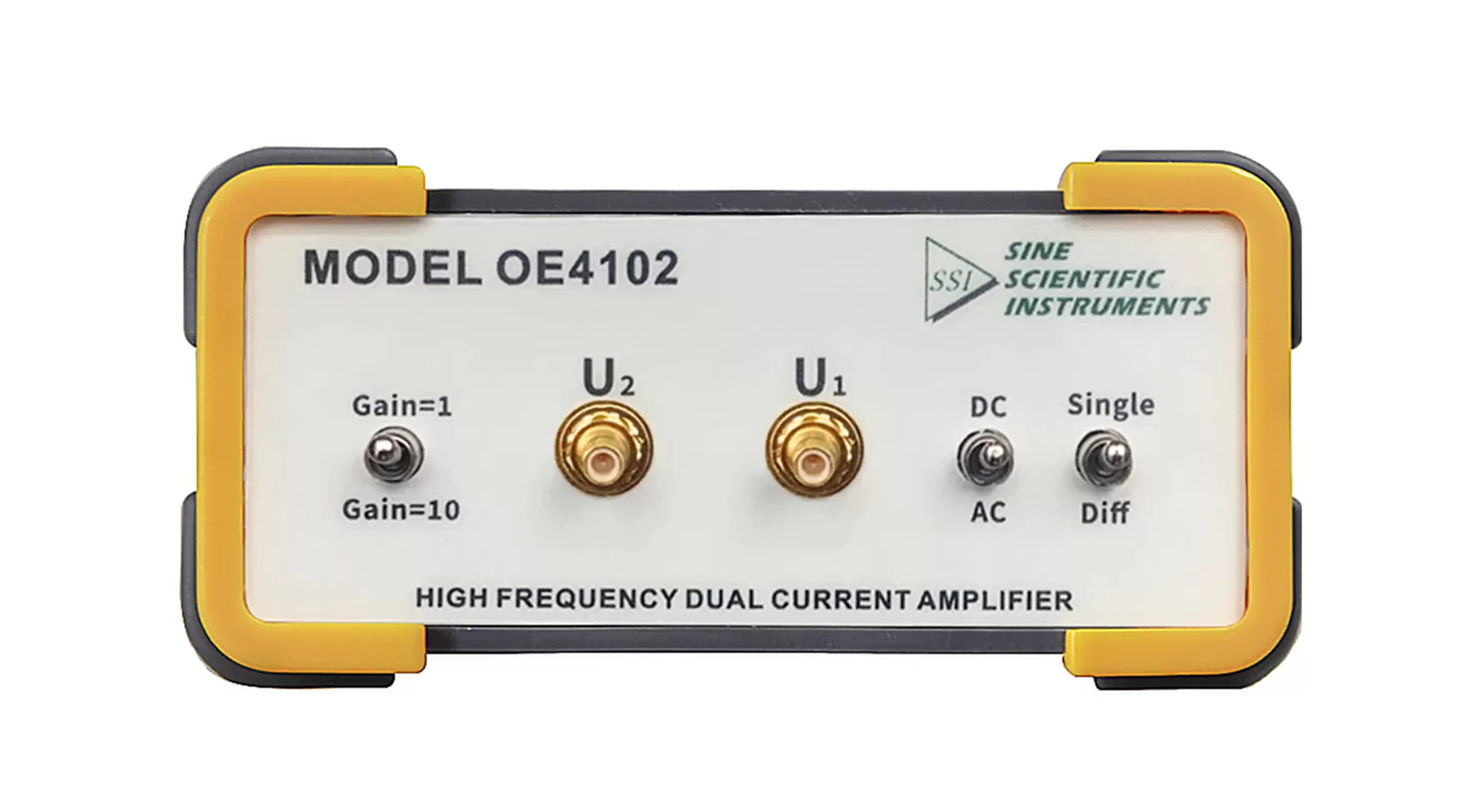

The OE4102 detects current by measuring the voltage drop across a resistor on the input current channel, amplifies and outputs a voltage signal proportional to the measured current.
100fAV/√Hz Input Current Noise

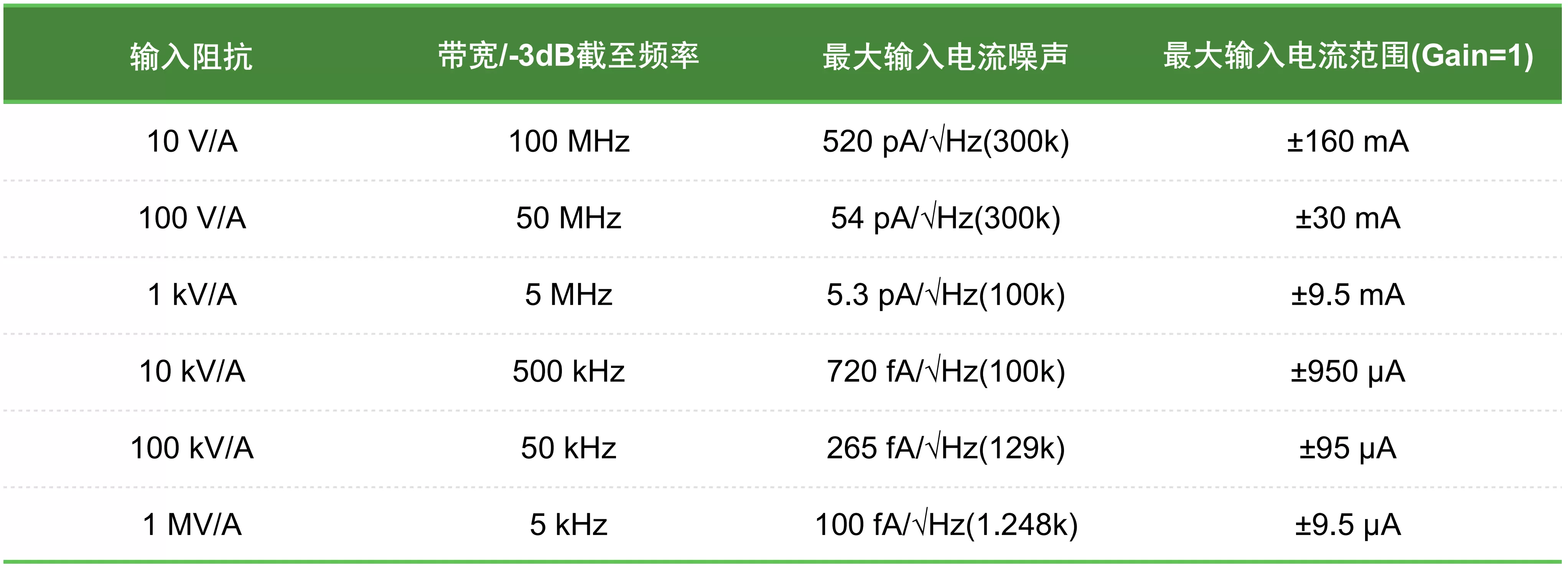

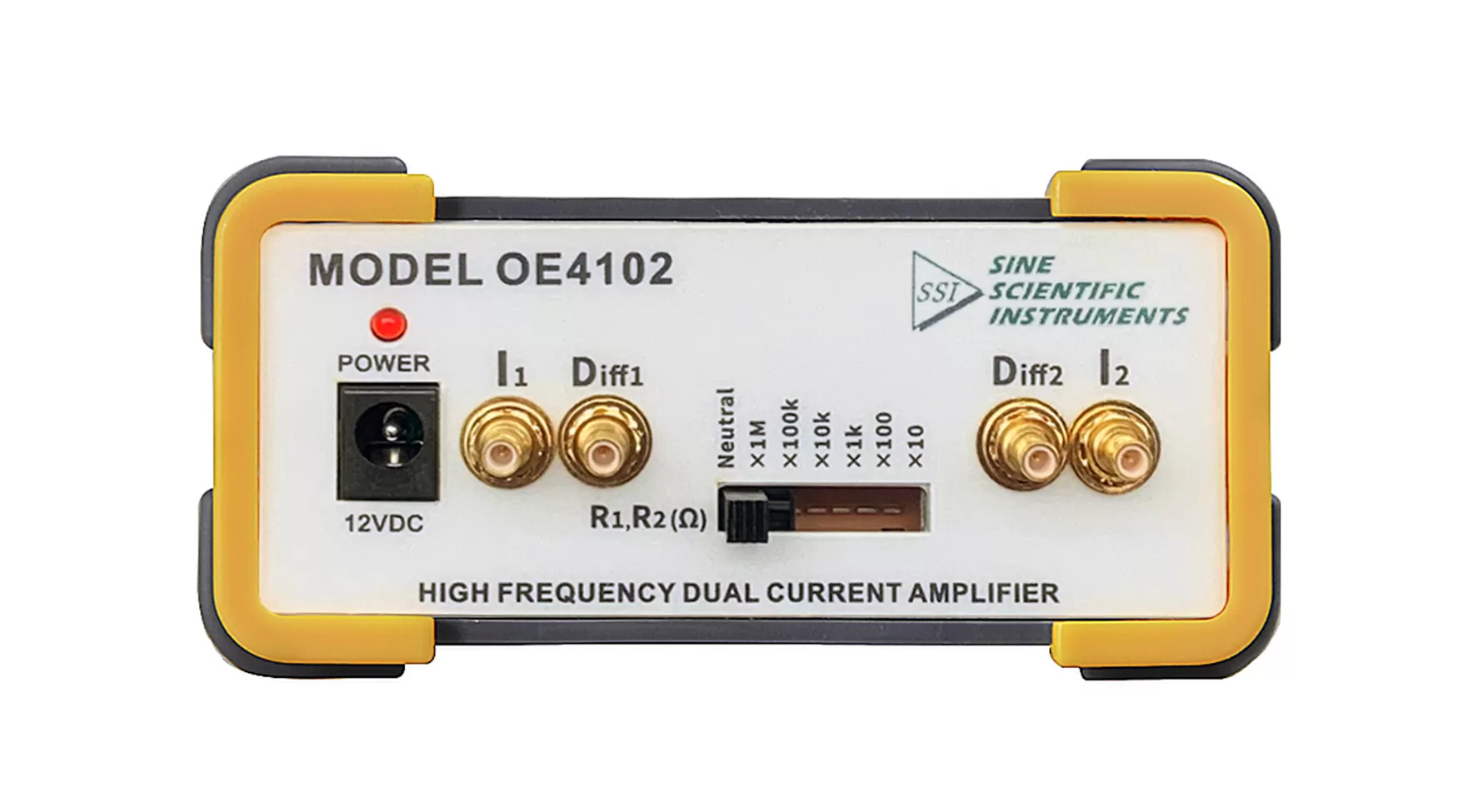

10V/A,100V/A,1kV/A,10kV/A,100kV/A,1MV/A Current Gain
1,10 voltage gain
Single-ended or differential inputs

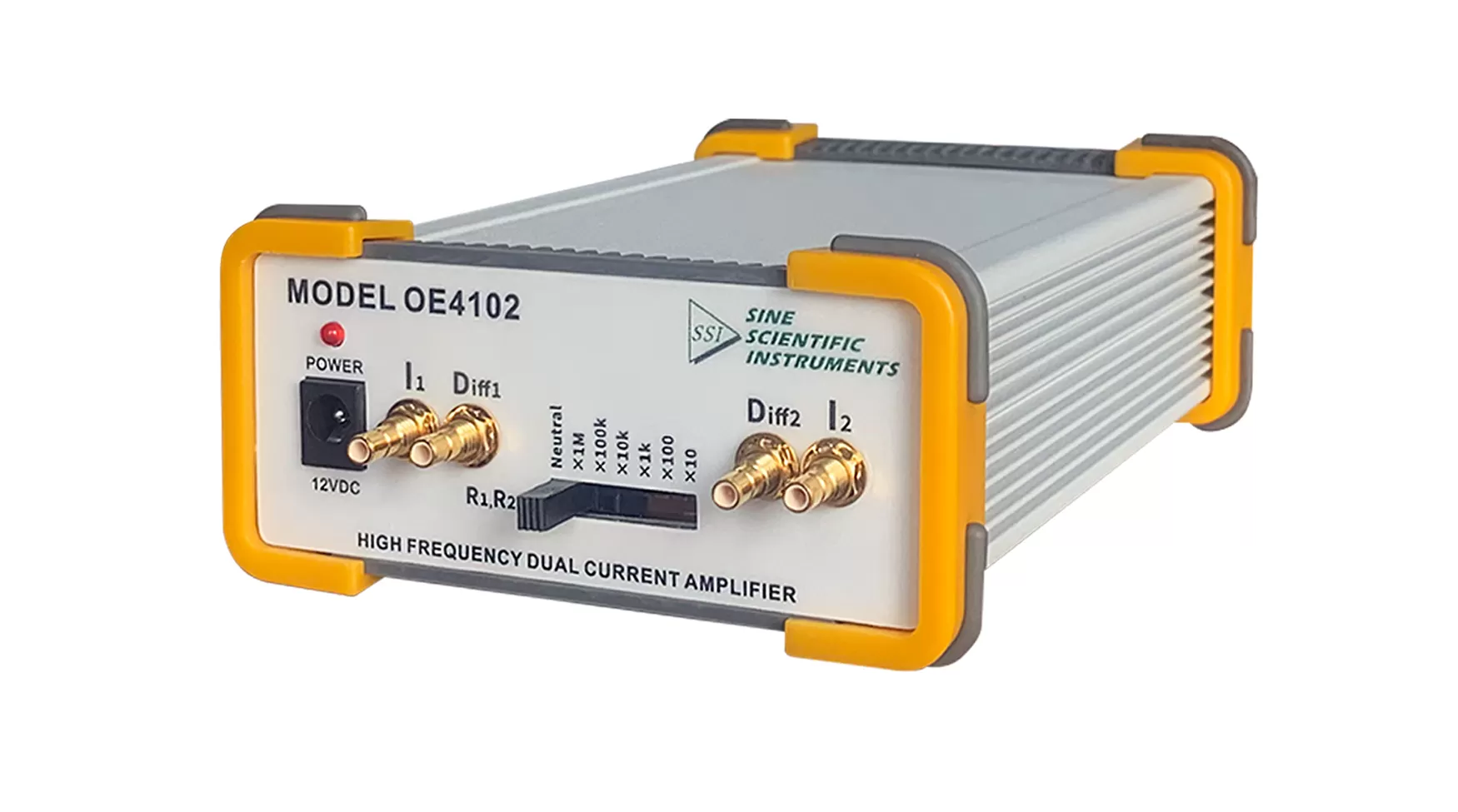

| Dimension | 102*162*49(mm) |
| Weight | 0.3kg |
| Storage temperature | -20℃to 65℃ |
| Operating temperature | 5 ℃ to 40℃ |
| Power supply | 12V/1A |
| Maximum power consumption Approx | 7.9W |
| Size | 102*162*49(mm) |
| Weights | 0.3kg |
| Storage Temp. | -20°℃ to 65°C |
| Work Temp. | 5℃ to 40°C |
| Specification Temp. | 25C |
| Using Power | 12V/1A |
| Power Wastage | 7.9W max |
| Connection Ports | 4 SMB inputs |
| 2 SMB outputs | |
| DC 5.5-2.1 mm input terminals |
Caution: Unless otherwise noted, all specifications apply only to units after 30 minutes of preheating.
| Scope of supply: | |
| MIN | 9V |
| RATED | 12V |
| MAX | 15V |
| Inputs: | |
| Input Mode | Single-ended or Differential |
| Current Range | ±160 mA |
| Current Noise | 100 fA/√Hz |
| Voltage Noise | 7 nV/√Hz(10kHz) |
| Bias Voltage | <±1mV |
| Leakage Current | 2 pA |
| Impedance Range | 10 V/A-1 MV/A (Z//12pF) |
| Coupling Method: | |
| DC coupling | DC-100 MHz |
| AC coupling | 290 kHz-100 MHz |
| Common-mode | ±9.5V |
| Outputs: | |
| Output Mode | Single-ended |
| Voltage Gain | Gain=1,Gain=10 |
| Output Voltage | ±9.5V max |
| Frequency Response | DC-100 MHz |
| Impedance | 50Ω |
| Gain Accuracy | 1% typical,5% max |
Caution: All parameter values in the table are typical and will vary depending on the source capacitance, input signal swing, and capacitive loading at the output of the amplifier.
Test conditions: Supply voltage = 12V, ambient temperature = 25°C; input current 14mA-0.5μA; OE4102 gain steps 10V/A-1MV/A, DC-coupled, single-ended input, Gain = 1.
Note: [1]. 10V/A stall input capacitance Cs=100pF.

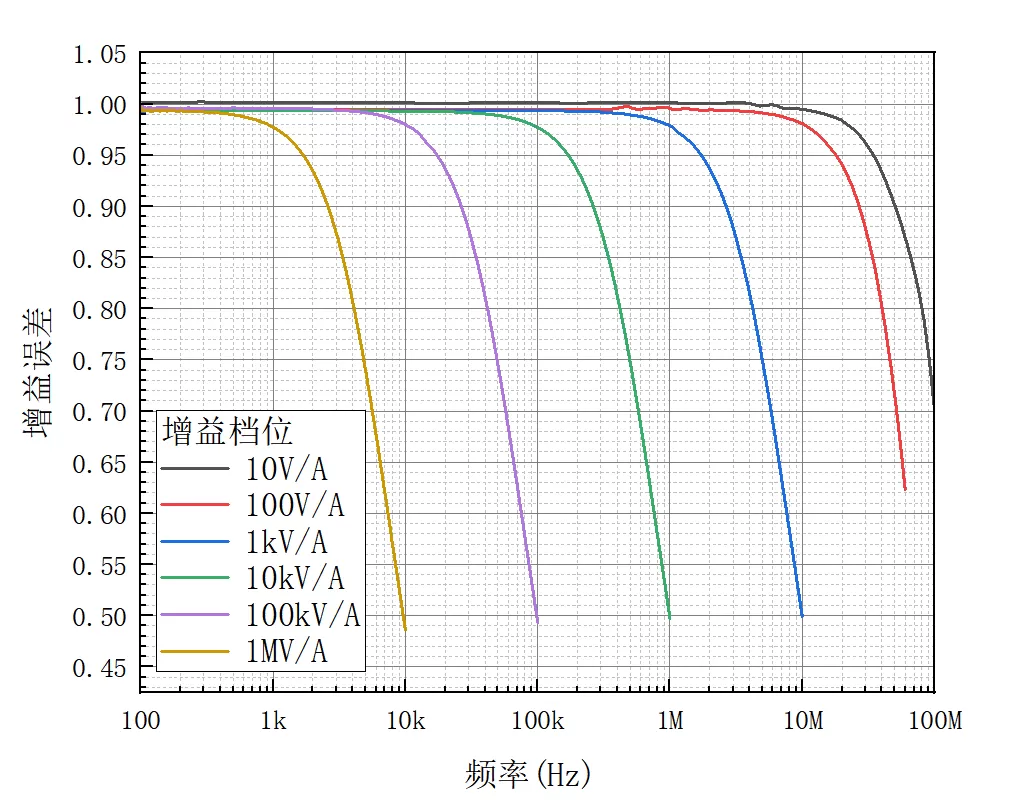

Fig.1 Gain error-frequency curve

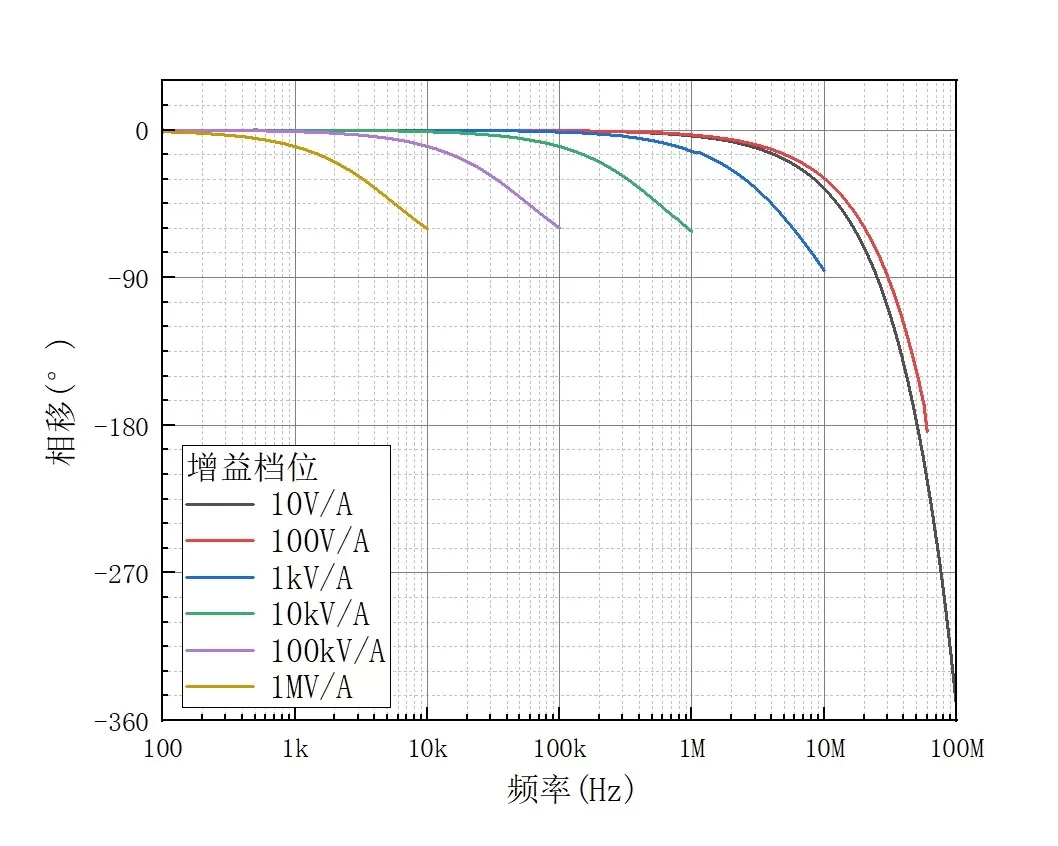

Fig.2 Phase shift-frequency curve
